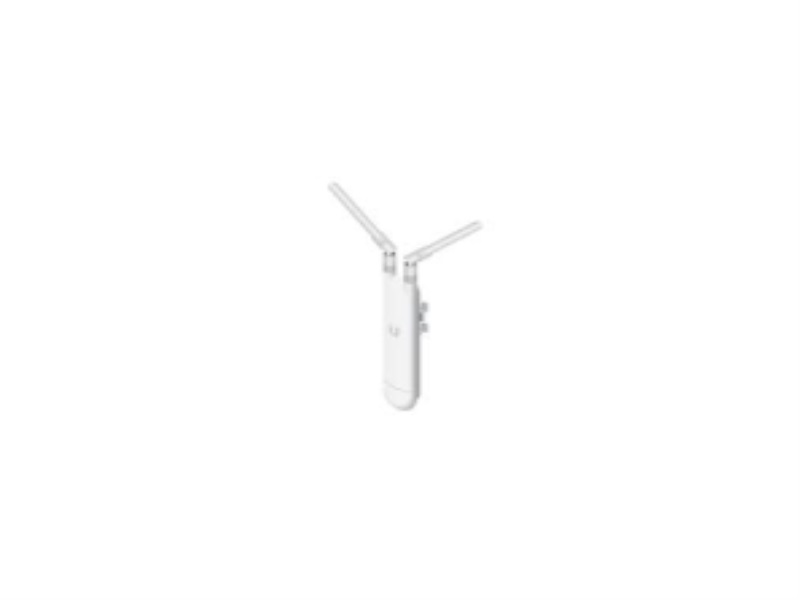

UAP-AC-M
Boyutlar 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35")
Ağırlık
Montaj Kitleri Dahil 152 g (5.36 oz) with Antennas
Ağ Arayüzü (1) 10/100/1000 Ethernet Port
Buttonlar Reset
Güç Türü 24V Passive PoE (Pairs 4, 5+; 7, 8 Return);
802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)
(Voltaj Aralığı: 44 to 57VDC)
Desteklenen Voltaj Aralığı 44 to 57VDC
Güç Kaynağı 24V, 0.5A Gigabit PoE Adapter*
Güç Tasarrufu Var
Maks. Güç Tüketimi 8.5W
Maks. TX Gücü
2.4 GHz
5 GHz
20 dBm
20 dBm
Antenler
2.4 GHz
5 GHz (2) External Dual-Band Omni Antennas
3 dBi
4 dBi
Wi-Fi Standardları 802.11 a/b/g/n/ac
Kablosuz Gücenliği WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
F
BSSID Up to 8 per Radio
Montaj Wall/Pole/Fast-Mount (Kits Included)
Çalışma Sıcaklığı -30 to 70° C (-22 to 158° F)
Çalışma Nemi 5 to 95% Noncondensing
Sertifakalar CE, FCC, IC
Gelişmiş Trafik Yönetimi
VLAN 802.1Q
Advanced QoS Kullanıcı Bazlı Hız Sınırlandırması
Ziyaretçi Trafik İzolasyonu Var
WMM Voice, Video, Best Effort, and Background
Eşzamanlı Alıcı 250+
Desteklenen Veri Hızları (Mbps)
Standard Data Rates
802.11ac 6.5 Mbps to 867 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS23, HT 20/40)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
