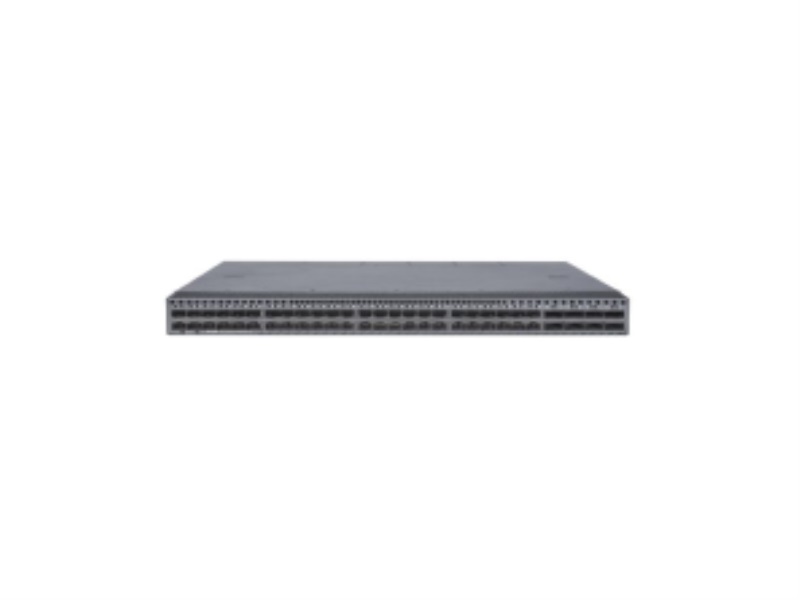

Cloud Data Center Switches
48x10G ports and 8x100G ports
Hot swapping
2 slots for power supply modules.
4 slots for fan modules.
Hardware Specifications
System Specifications
RG-S6250-48XS8CQ
Ports
48 x 10GE ports and 8 x 100GE ports
Expansion Modules
Power supply module slots
Fan module slots
Management Port
One management port, one console port, and one USB port (compliant with the USB2.0 standard)
Switching Capacity
2.56Tbps
Packet Forwarding Rate
1920 Mpps
802.1Q VLAN
4094
Dimensions and Weight
RG-S6250-48XS8CQ
Dimensions
(W × D × H)
442 mm × 387 mm × 44 mm (17.40 in. x 15.24 in. x 1.73 in.), 1 RU
Weight
8 kg (17.64 lbs., including two power supply modules and four fan modules)
Power Supply and Consumption
RG-S6250-48XS8CQ
AC
Rated voltage range: 100 V AC to 240 V AC
Maximum voltage range: 90 V AC to 264 V AC
Frequency: 50 Hz to 60 Hz
Rated input current: 3.5 A to 7.2 A
High-Voltage DC (HVDC)
Input voltage range: 192 V DC to 288 V DC
Rated input current: 3.6 A
Low-Voltage DC (LVDC)
Input voltage range: –42 V DC to –72 V DC
Rated input voltage: –48 V DC
Rated input current: 23 A
Maximum Power Consumption
< 300 W
Environment and Reliability
RG-S6250-48XS8CQ
Operating Temperature
0°C to 45°C (32°F to 113°F)
Operating Humidity
10% to 90% RH (Non-condensing)
Software Specification
Software Specification
RG-S6250-48XS8CQ
L2 Protocols
IEEE802.3ad (Link Aggregation Control Protocol), IEEE802.1p, IEEE802.1Q, IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP Snooping, MLD Snooping, Jumbo Frame (9 KB), IEEE802.1ad (QinQ and selective QinQ), and GVRP
L3 Protocols (IPv4)
BGP4, OSPFv2, RIPv1, RIPv2, MBGP, LPM Routing, Policy-based Routing, Routing Policy, ECMP, WCMP, VRRP, IGMP v1/v2/v3, PIM-SSM/SM/DM, MSDP, and Any-RP
Basic IPv6 Protocols
Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, and IPv6 QoS
IPv6 Features
Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+, MLD v1/v2, PIM-SMv6, manual tunnel, automatic tunnel, IPv4 over IPv6 tunnel, and ISATAP tunnel
Data Center Features
VXLAN routing and VXLAN bridging
IPv6 VXLAN over IPv4
EVPN VXLAN
PFC and ECN
M-LAG
OpenFlow 1.3
Visualization
gRPC
sFlow sampling
QoS
802.1p, DSCP, and ToS priority mapping
ACL-based traffic classification
Priority marking and remarking
Queue scheduling mechanisms, including SP, WRR, DRR, SP+WRR, and SP+DRR
Congestion avoidance mechanisms, including WRED and trail drop
MPLS
* MPLS VPN
Virtualization
Virtual Switching Unit (VSU)
Cache Management
Cache status monitoring and traffic microburst identification
HA Design
GR for RIP/OSPF/BGP, BFD, DLDP, REUP dual-link fast switching, RLDP unidirectional link detection, 1+1 power redundancy, fan redundancy, and hot swapping for all line cards and power supply modules
Security Features
Network Foundation Protection Policy (NFPP), CPU Protection Policy (CPP), DDoS attack defense, unauthorized data packet detection, data encryption, source IP spoofing prevention, IP scanning prevention, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 authentication for OSPF, RIPv2, and BGPv4 packets, Telnet login and password mechanisms for restricted IP addresses, uRPF, broadcast packet suppression, DHCP Snooping, ARP spoofing prevention, ARP check, and hierarchical user management
Management Modes
SNMP v1/v2/v3, Telnet, Console, MGMT, RMON, SSH v1/v2, FTP/TFTP, NTP, Syslog, SPAN/RSPAN/ERSPAN, Telemetry, ZTP, NETCONF, Python, fan and power supply alarming, and over-temperature alarming
Other Protocols
DHCP Client, DHCP Relay, DHCP Server, DNS Client, UDP Relay, ARP Proxy, and Syslog
